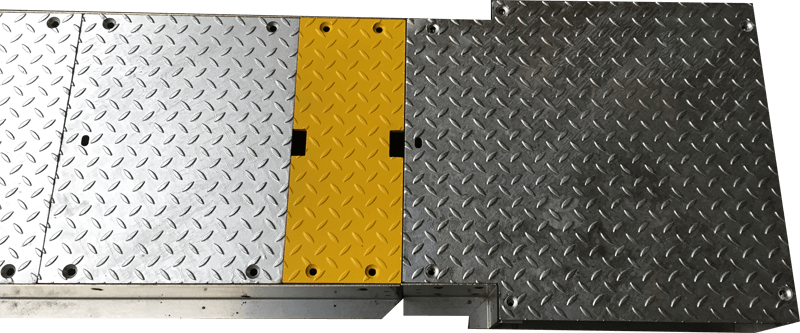

LATEST TRUNKING PROJECT Ashington College, Northumberland We have recently manufactured 60m of
special trunking for Ashington College,
Northumberland.
Find out more
CABLE MANAGEMENT Cable management supports and contains cables during installation, and makes subsequent maintenance easier. Click to find out more about trunking applications. Find out more

Bespoke Heavy Duty Trunking, Made to Measure

Screeduct® has been designing and manufacturing bespoke heavy duty floor trunking since 1990. Nothing we make comes from stock. Every system is made to measure, in any width and depth, to your drawings or your contractor’s plans, and delivered in sections that nut and bolt together on site to save installation time and cost.

We’ve worked with contractors, architects and chief engineers on projects in hospitals, factories, colleges and universities, railway stations and public buildings across the UK.

To discuss your requirements, call 07718660566 or email sales@screeduct.com.

BENEFITS OF CHOOSING SCREEDUCT:

  • Bespoke product made to your exact specification
  • Heavy duty system, with steel covers up to 12mm thick
  • Interchangeable lids, so access points can move if the layout changes
  • Sections nut and bolt together, saving installation time
  • Installed within screed or retrospectively in apertures
  • Patented side flanges mean no mechanical fixing is required
  • Clips and dividers to keep power, data and pipework separate

POSSIBLE APPLICATIONS:

  • Hospitals: MRI, CT and X-ray rooms
  • Colleges and universities: all services
  • Football grounds: advertising boards
  • Car factories: production lines
  • Conference centres: AV systems
  • Supermarkets: checkouts
  • Railway: barriers

Our Trunking Solutions

Every system is made to measure, in any width and depth, to suit the cables, pipework and floor it is going into.

Flush Floor and Underfloor Trunking

Flush Floor & Underfloor Trunking

Trunking that finishes level with the floor, with removable lids along the run. No trip hazards, no surface containment and no trailing cables.

Flush floor trunking
Galvanised Steel Trunking

Galvanised Steel Trunking

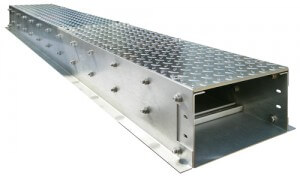

Made to measure as cable trunking or pipe trunking, with interchangeable lids and up to five compartments to keep services separate.

Galvanised steel trunking
Hospital Trunking

Hospital Trunking

Floor trunking for MRI, CT and X-ray rooms, theatres and wards, with lids placed where engineers need access for servicing and upgrades.

Hospital trunking

How our trunking can be fitted

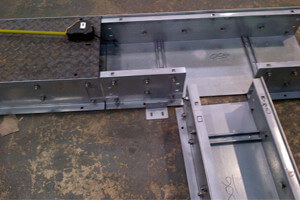

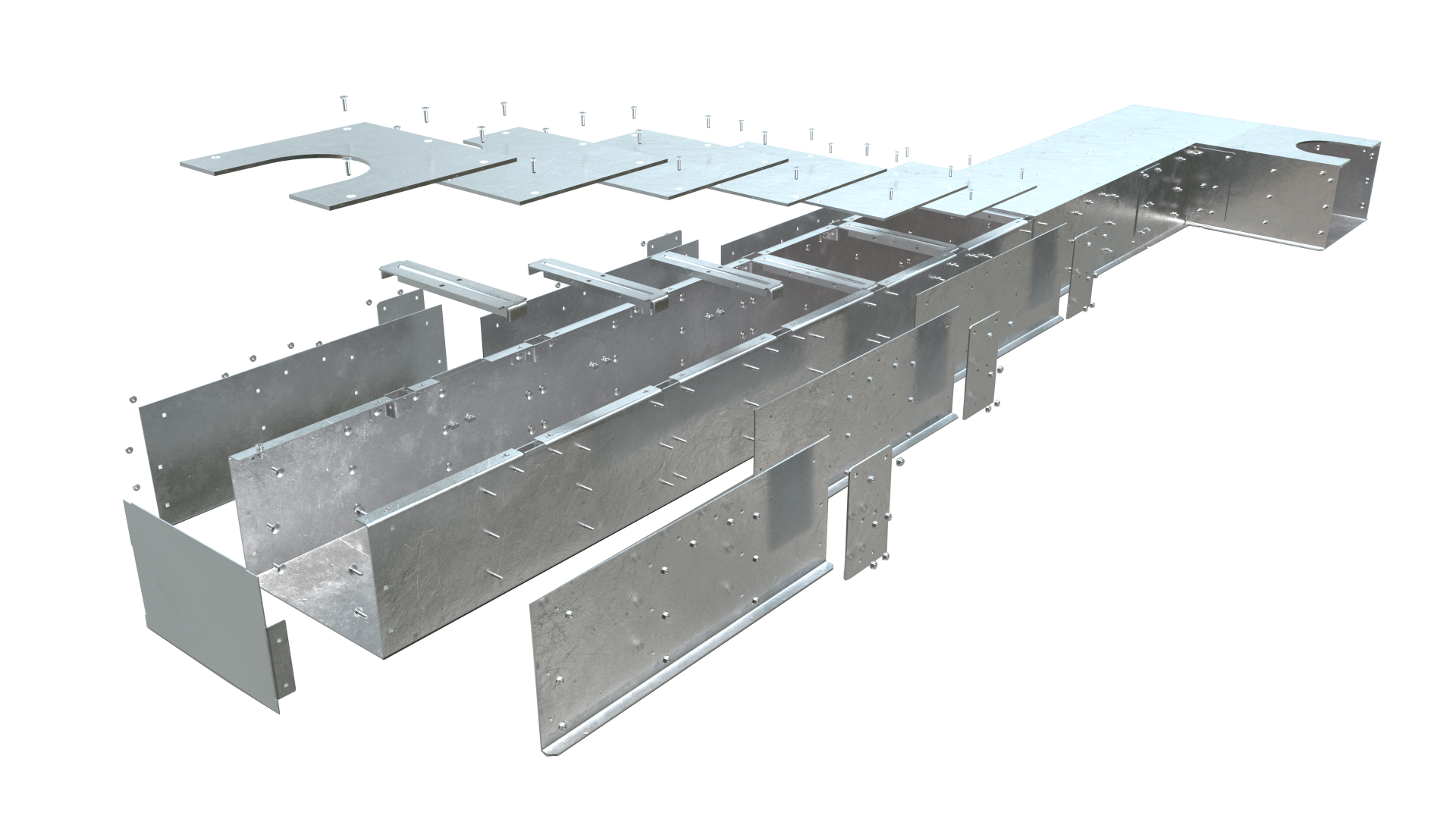

Our trunking is delivered in sections that simply nut and bolt together, giving a perfectly fitting run without cutting on site and saving installation time.

On new builds it is levelled on a mortar bed, and our patented side flanges hold the trays in place as the screed is floated, so no mechanical fixings are needed. In existing floors it can be fitted retrospectively into apertures, with steel suspension available for oversized openings.

Recent Projects

Our trunking has been specified on projects across the UK, from hospital imaging suites to part of the historic Parliament buildings in Westminster.

1 Derby Gate, Westminster

Pre-galvanised steel trunking with flat flush lids and five compartments for electrical and data cables, in lengths of up to 1800mm so it could be moved via lifts.

Royal Sussex County Hospital

Single and two compartment trunking made to plan for the X-ray department and the CT and MRI scanning rooms.

Singleton Hospital, Swansea

Refurbishment of an MRI suite. The old floor duct was replaced with 14 gauge galvanised steel two-compartment units and 6mm aluminium chequer plate lids.

RAF Museum, Hendon

300 metres of trunking with 10mm chequer plate tops, interchangeable lids and an RAF grey epoxy powder coating.

How a Bespoke Order Works

1. Talk to us

We discuss your project, including outlet positions, floor area and any loads the trunking needs to carry.

2. Plans

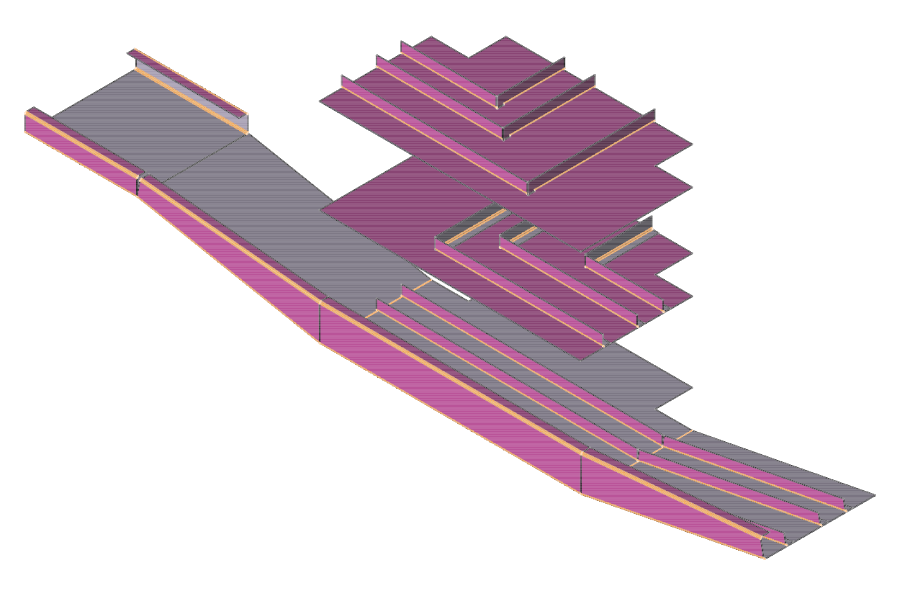

We create bespoke technical plans for your project, or manufacture to plans supplied by your contractor.

3. Manufacture

Your trunking is made to measure in the material, size, lid and compartment layout you need.

4. Install

Sections are delivered ready to nut and bolt together, and we work closely with your building contractor.

Trunking FAQs

No. Nothing we make comes from stock. Every system is made to measure, in any width and depth.

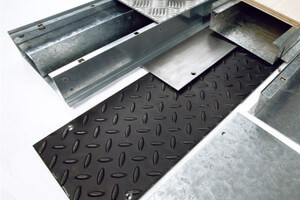

Mild steel, pre-galvanised steel, stainless steel and aluminium. Steel covers are available up to 12mm thick for heavy duty use, and lids can be flat plate, chequer plate or plywood.

Yes. As well as being cast in screed on new builds, it can be fitted retrospectively into apertures in an existing floor. For oversized apertures, steel suspension lets it sit level and finish flush.

Yes. Clips and dividers partition the trunking to suit site requirements, and we have made systems with up to five compartments.

Yes. We make heavy duty pipe trunking and service ducting to the same made to measure standard, for water, power, telecoms and gas pipework.

It depends on the material, thickness and size. Tell us the payload in tonnes and we will work out the best-suited material for the job.
